2021 Sliding door for cold room

FOB Reference Price:Get Latest Price
$1,000.00 - $2,000.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
Swing/sliding door
Report Suspicious Activity
Overview
Quick Details
Temperature:
-50℃ ~ +50℃
Cooling Capacity:
Other
Panel Thickness:
200mm
Applicable Industries:
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Food Shop, Construction works
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Local Service Location:
Viet Nam, Philippines, Saudi Arabia, Indonesia, Pakistan, Thailand, Malaysia
Showroom Location:
Viet Nam, None
Condition:
New, New
Place of Origin:
Shandong, China
Brand Name:
Aonaer
Voltage:
220V/380V, 220V/380V
Power:
Customized, Energy Save
Dimension(L*W*H):
Customer Demand
Weight:
Freezer (cold Room) Dimension
Certification:
CE ISO9001
Warranty:
1 Year
After-sales Service Provided:
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support, Engineers available to service machinery overseas
Key Selling Points:
Easy to Operate
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 Year
Core Components:
Pressure vessel, Motor, Bearing, Gear, Gearbox, PLC, Pump, Engine
Door Type:
Swing/sliding door
Application:
Food Industry
Dimensions:
Customers Demand
Door Thickness:
50/100/150/200mm
Panel Material:
Stainless steel/Color steel
Supply Ability
Supply Ability:
1000 Set/Sets per Month
Packaging & Delivery
Packaging Details
packed with plywood case according to the seaway standard
Port
Qingdao
Picture Example:
package-img
package-img
Video Description
Detailed Images

Heating Insulation:

Cold Room space is the place for the storage and preservation of agricultural products, it is normally used to maintain the stability of low temperature environment which usually called heating insulation. The heating insulation includes three parts:Panels, Door , Floor Insulation. Good heating insulation structure can maximize to keep that the cold which is created by condensing units inside the cold room space, in turn, it can maximize to keep the heat outside of the cold room space. This is mainly different part between the cold room and general rooms.



Panels

1.Cold Storage Room using 100% polyurethane panel;

2.Panels’ thicknesses are different according to the temperature in the Cold storage room;

(50mm,75mm,100mm,150mm,200mm etc.)

3.Sides materials: Color steel plate, Stainless steel plate;

4.Specification(Thickness): 50mm, 75mm, 100mm, 120mm, 150mm, 175mm, 200mm;

5.Splicing: The convex groove form,Eccentric hook lock box, Sealing material sealing gap;

6.Size: Width 960mm/1160mm; Any long less than 1200mm;

7.Advantages of the panels:

(1).Good Thermal insulation properties, Thermal coefficient is less than 0.024w/m.k. Obturator rate can get to 90%. Ensure the property of the plates. Can largely reduce the cost of Heating and electromechanical.

(2).Fire performance

 The plates fire proof property can meet B grade.difficult to burn in the air, from the fire self-extinguishing

(3).Sound insulation performance

 Sound insulation coefficient bigger than 27dB. Effectively reduce the noise impact, can meet building diversified needs

(4).Sealing property

 The plates can prevent moisture and rain from entering,at the same time ensure the heating insulation property.

(5).High strength



 Strong stiffness and bearing capacity to meet building physical properties and compression requirements.





Doors

Cold Room Door is one of the key parts of whole refrigeration unit system. Bad cold room doors can destroy a refrigeration system because of the bad  Sealing.Our Cold Room Doors are complete in specifications, outstanding in performance and beautiful in appearance, and reliably in quality. The technical level of our electric doors is leading among similar products.

Cold Room Doors are shaped by foaming at one time through high-pressure injection of PU. PU is of dense tissue, evenly filled, without foam contracting and bulging, making door flat and artistic.



Sealing strips: The tightness of refrigeration storage doors mainly depending on the strips.

Types:

1.Sides: according to customers;

2.Materials: polyurethane foaming;

3.Types: sliding doors or swing doors;

4.Motivations: manual doors or electric doors;

5.Doors’ thicknesses are different according to the temperature in the air blast freezer

Advantages of Doors:

(1).Hardware components used for doors are pressed through mechanical process, with high precision. They can ensure doors opened easily and freely.

(2).Anti-freezing devices: Electric heating anti-freezing devices are fixed around the door to effectively prevent doors and door frames from bonding and freezing.

(3).Out-of-danger devices: When someone is locked in the storage carelessly, just turn the out-of-danger handle and pull the door opener device to open the door and escape danger smoothly without destroying the door lock.

(4).Electric driving devices: With specific switching device, when power is off, the driving device is separated automatically to allow easy manual operation. With photoelectric contactless switch, the storage door will stop automatically when it runs almost to terminal (with certain distance left) ,against impact. Gear racks or chains are used for driving, allowing longer service life. With PLC or IC control, the electric control system runs smoothly and steadily ,easy maintenance.

(5).Air curtain: Large air-pressure centrifugal fan is used to effectively reduce the loss of cool air in the refrigeration storage.



Floor Insulation:

Refrigeration System:

Refrigeration system mainly includes cold storage unit, which is the core of the cold storage to ensure that the cold storage room cold source supply. The control device is the brain of the cold storage, which directs the cooling system to ensure the cooling supply.

Generally cold room works with the refrigerator to use the liquid whose gasification temperature is very low (ammonia or freon) as a refrigerant, and when it is taken into the low pressure and mechanical control conditions, its evaporation will absorb the heating inside the cold room to achieve the refrigeration purpose.

The most popular refrigeration unit are mainly composed of the compressor, condenser, valve and evaporator and other components.

The compressor units what we use are imported from Germany. The air chiller and evaporator are researched and made by our company, in these way, we can make it with high quality control, production duration control and cost saving .Solenoid valve, thermal expansion valve, sight glass are famous Danfoss brand and other parts Such as copper ball valves, filters, welding valves,  are freon international, domestic well-known brands.



Refrigerator Swing/Sliding Door







Specification



cold room door material 100% polyurethane foaming material
cold room door density 45kg±2kg/m³
thickness optional  75/100/150/200mm
steel plate optional stainless steel/painted galvanized steel
door type optional electric/manual sliding door swing door



All of our cold room door have the escape equipment to protect our staff from trapping in the storage.

for low temperature cold room door, we add the electric heater and air curtain machine to protect the door and stop the cold air from  indoor alternating with the hot air from outdoor.

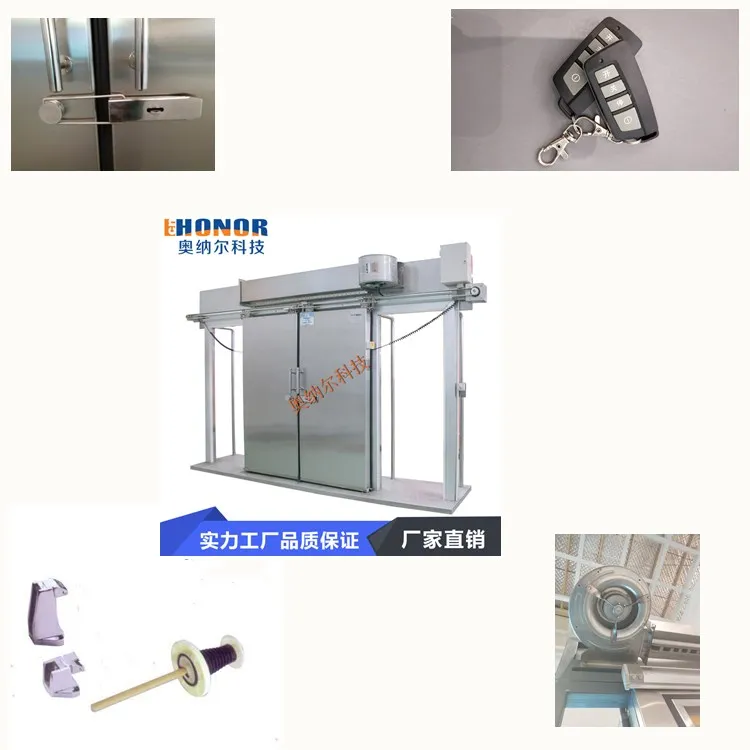

detailed photos



other types doors



Are you interested in them?

Other Products







Our company




Shandong Huayu Machinery Equipment CO., Ltd

Main products:

Shandong Huayu Machinery Equipment CO., Ltd, located in Boxing with convenient transportation access, is a modern, professional, international and large-scale manufacturer and exporter.

 And we have three professional companies to produce slaughtering equipment, cold storage room and other stainless steal workshop products so that we can provide a total service according to your demand.

High Quality:

All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world. Our well-equipped facilities and excellent quality control throughout all stages of production make us to guarantee total satisfaction of the customers. Besides, we have received ISO 9001:2008, CE, HALAL.

Good Oversea Service:

As a result of our high quality products and oversea customer service with a strong engineers and technician team, we have gained a global sales network reaching America, France, Australia, Egypt, Cambodia, Vietnam and 20 other countries and regions

Contact:

If any need or question, please feel free to contact us.
